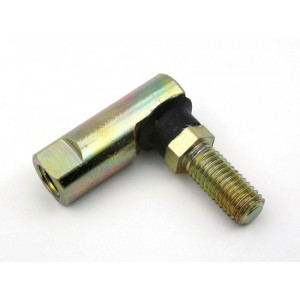

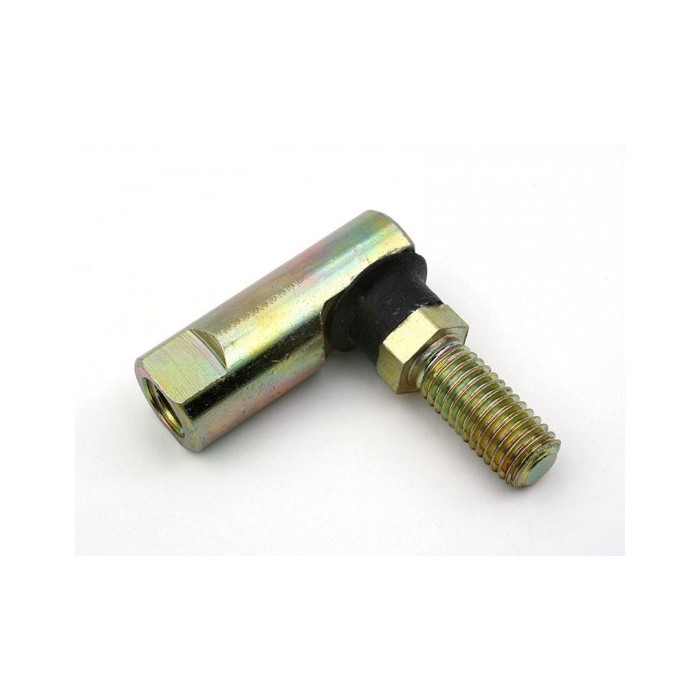

FM METRIC SERIES BALL JOINT

FM METRIC SERIES BALL JOINT,Metric Series Ball Joints

Material:
Body and ball stud Low carbon steel.. Case hardened.
Inner retaining ring Hard drawn spring steel to SAE1070 or equivalent

Protective Finish:
Body and ball stud Zinc plated, de-embrittled and passivated.
Inner retaining clip Self-color. The assembly is lubricated.

• Metric equivalent to SAE J 490 style 4.
• Ball stud is retained by a hardened and tempered steel ring resulting in high pull-out load. There is an optional gaiter available to help resist dirt ingress.
• If a fitted gaiter is required then the suffix “G should be added to the part number. E.g FMG10.
• The FM Ball Joint is ideal for severe wear conditions and is also resistant to vibration and high shock loading.
• Inch sizes of this range are also available.

DESCRIPTION
