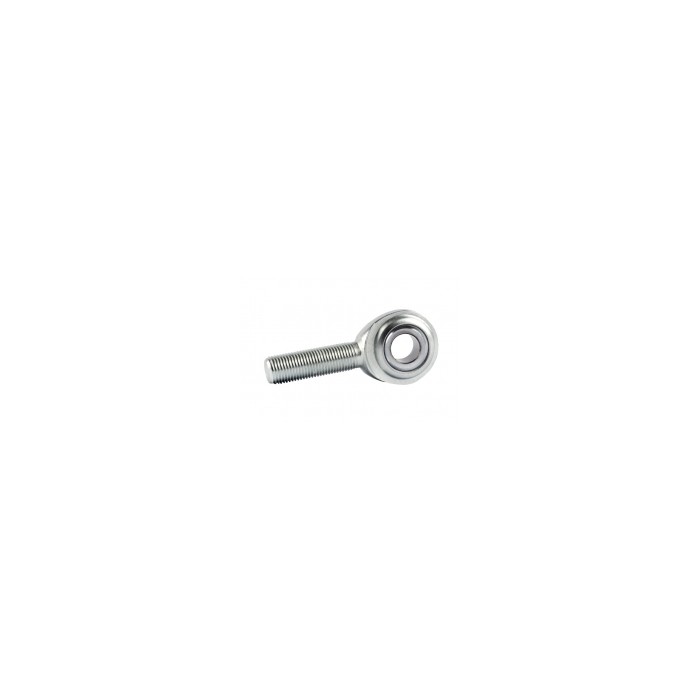

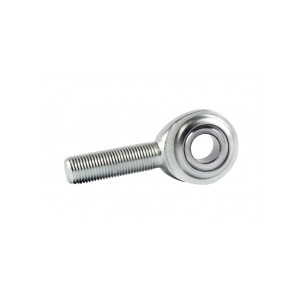

1/2" x 1/2" Right Hand Male CMR8 Economy Rod End

1/2" x 1/2" Right Hand Male CMR8 Economy Rod End

1/2" x 1/2" Right Hand Male CMR8 Economy Rod End

hese 1/2" x 1/2" Right Hand Male CM Economy Series 2-Piece Rod Ends are constructed from Carbon steel. The ball is inserted into the body and the head is swaged around the ball. These joints have no liner between the ball and the body, this gives a loose feel to the ball which is ideal for certain applications where vibration/resonance is present.

CM3, CM3T,CM4, CM4T,CM5,CM5T,CM6,CM6T,CM7, CM7T,CM8,CM8T,CM10,CM10T,CM12,CM12T



More details

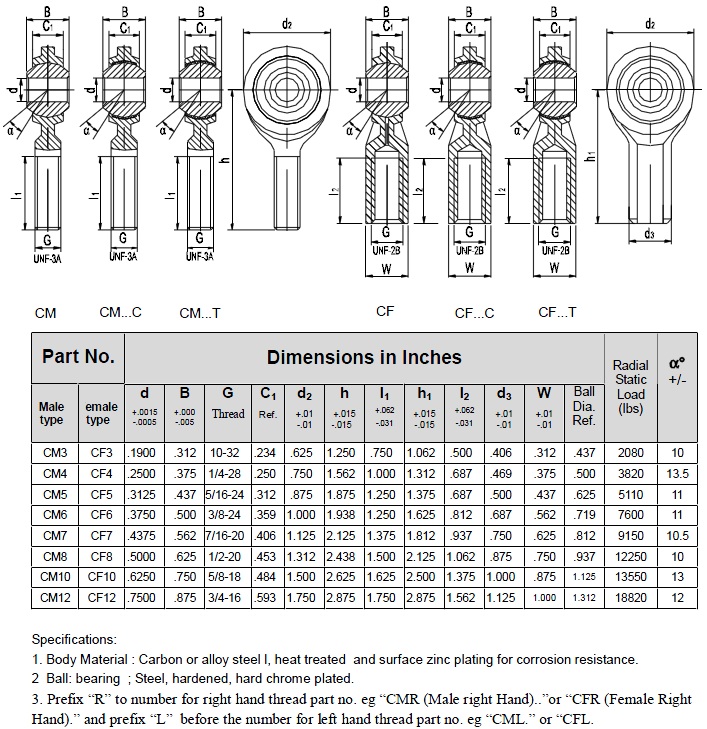

CM Economy Series 2-Piece Rod End

(CMR8 - 1/2" x 1/2" Right Hand Male)

Carbon Steel Body.

CM 2-piece economy male joints have 2 components; the ball and the body. The ball is inserted into the body and the body is then swaged around the ball to lock it in and it is then loosened to allow it to move. The body is made from Carbon Steel. These joints are ideal for use in areas which do not have a large force present or for gear/throttle linkages or where vibration may be heavy at the ball. These are commonly used on industrial equipment. These joints should be kept lubricated.

BALL:  52100 Bearing Steel  ~  Heat Treated  ~  Hard Chrome Plated  ~  Precision Ground

BODY:  Carbon Steel ~  Heat treated  ~  Protective Coated for Corrosion Resistance

EXCLUSIVE FEATURES:  High Misalignment  ~  Cost Effective

CM3, CM3T,CM4, CM4T,CM5,CM5T,CM6,CM6T,CM7, CM7T,CM8,CM8T,CM10,CM10T,CM12,CM12T
