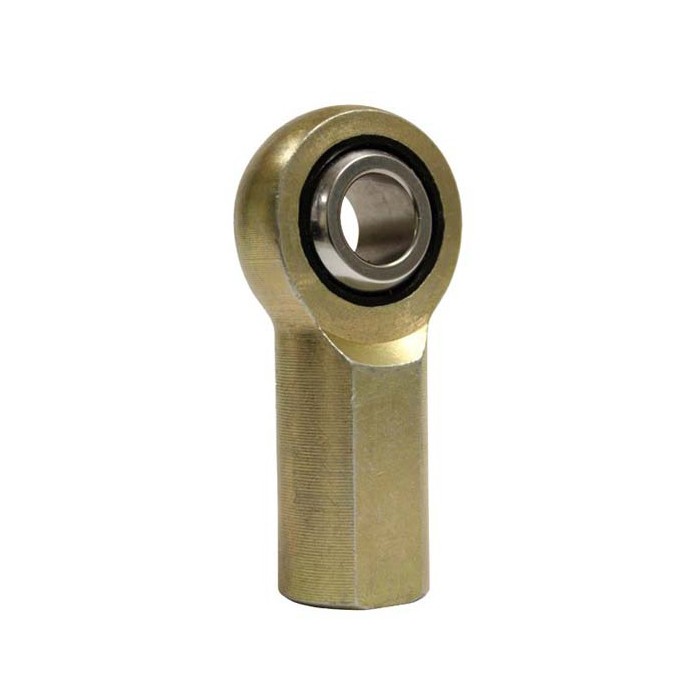

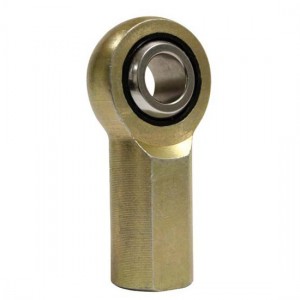

SPF Rod end with molded nylon race

SPF Rod end with molded nylon race

SPF3,SPF4,SPF5,SPF6,SPF7,SPF8,SPF9,SPF10,SPF12 rod end

Material:

Body,carbon steel,zinc plate

Ball,bearing steel GCr15,hard chromeplated.

Race,molded reinforced nylon

Left hand thread are available in all sizes.

If you are going to import Rod end bearing in stock or you want to check the price with one China rod end bearing manufacturer, supplier and factory, please feel free to contact Shanghai Yousen bearing Co.,ltd.

More details




Part No.

Thread Size

B

D

A

C

Ball Dia.

H

W

K

J

F

Ultimate Radial Load Capacity

UNF-2A









(Pounds)

SPF3

10-32

0.1900

0.625

1.062

0.562

0.438

0.250

0.312

0.406

0.312

0.406

1210

SPF4

1/4-28

0.2500

0.750

1.312

0.750

0.516

0.281

0.375

0.469

0.375

0.469

2470

SPF5

5/16-24

0.3125

0.875

1.375

0.750

0.625

0.344

0.437

0.500

0.437

0.500

2740

SPF6

3/8-24

0.3750

1.000

1.625

0.937

0.719

0.406

0.500

0.687

0.562

0.562

4100

SPF7

7/16-20

0.4375

1.125

1.812

1.031

0.812

0.437

0.562

0.750

0.625

0.625

5350

SPF8

1/2-20

0.5000

1.312

2.125

1.187

0.938

0.500

0.625

0.875

0.750

0.687

6430

SPF10

5/8-18

0.6250

1.500

2.500

1.500

1.125

0.562

0.750

1.000

0.875

0.875

8300

SPF12

3/4-16

0.7500

1.750

2.875

1.562

1.312

0.687

0.875

1.125

1.000

1.000

10900
