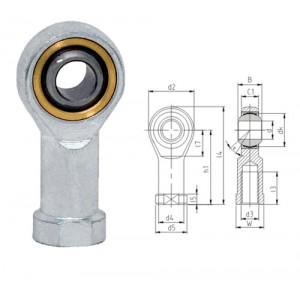

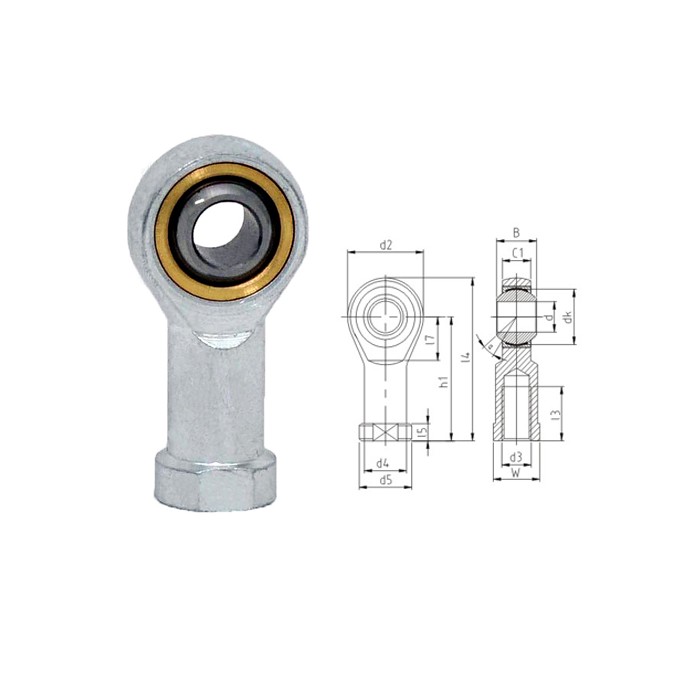

Rod End Bearing SI...TK



Maintenance free rod end bearing, body is made of carbon steel, zinc
plated; Bushing’smade of bronze, with antifriction PTFE composite material;
Ball’s made of carbon chromium steel, hardened and hard chrome plated.

Sliding contact
surfaces:		 Steel/PTFE
composite material
Bearing
Number		   Load
ratings KN		 ≈a° Unit
Weight
(kg)
Dimensions(mm)
d B dk C1 d2 d3 h1 l3 l4 l5 l7 w d4 d5 Dyn
amic
(KN)		 S-
tatic
(KN)
SI5T/K 5 8 11.11 7.5 18 M5X0.8 27 8 36 4 10 10 12 11 3.6 4.6 4 0.02
SI6T/K 6 9 12.7 7.5 20 M6X1 30 9 40 5 11 10 10 13 4.7 5.2 9 0.025
SI8T/K 8 12 15.8 9.5 24 M8X1.25 36 12 48 5 13 13 13 16 7.6 8.2 12 0.047
SI10T/K 10 14 19.05 11.5 30 M10X1.5 43 15 58 6.5 16 16 17 19 12 15 10 0.088
M10X1.25
SI12T/K 12 16 22.23 12.5 34 M12X1.75 50 18 67 6.5 18 18 18 22 14 19 12 0.14
M12X1.25
SI14T/K 14 19 25.4 14.5 38 M14X2 57 21 76 8 20 21 25 25 19 24 14 0.2
M14X1.5
SI16T/K 16 21 28.58 15.5 42 M16X2 64 24 85 8 24 22 27 27 23 29 14 0.25
M16X1.5
SI18T/K 18 23 31.75 17.5 46 M18X1.5 71 27 94 10 22.5 27 25 31 29 34 15 0.35
SI20T/K 20 25 34.93 18.5 50 M20X1.5 77 30 102 10 25 30 34 34 34 40 14 0.43
SI22T/K 22 28 38.1 21 56 M22X1.5 84 33 112 12 27.5 34 37 37 42 50 14 0.61
SI25T/K 25 31 42.86 23 60 M24X2 94 36 124 12 28.5 36 34 42 52 57 14 0.81
SI30T/K 30 37 50.8 27 70 M30X2 110 45 145 15 33 46 40 51 73 77 17 1.4
SI35T/K 35 43 57.15 28 80 M36X2 125 56 165 15 42 50 46 56 110 116 17 1.6

Remark:
1. The listed load rating,
unit weight is for reference.
2. For left-hand thread, suffix "L" is added to bearing number and thread sign,
e.g. SIL20T/K M20X1.5L-6H
