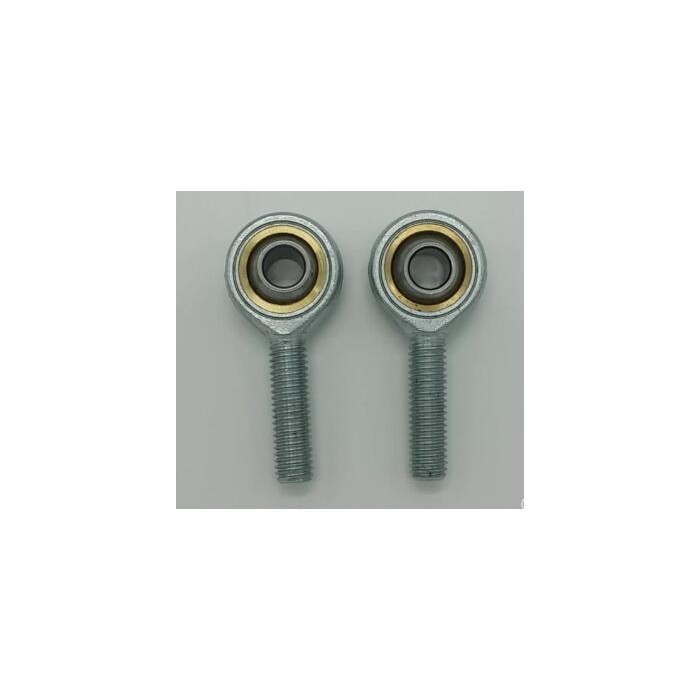

SA T/K Male Thread Rod End

View full size

SA5T/K, SA6T/K, SA8T/K, SA10T/K, SA12T/K,SA50T/K Male Thread Rod End

If you are going to import sa t/k bearing in stock or you want to check the price with one China sa t/k bearing manufacturer, supplier and factory, please feel free to contact us.

More details

More info

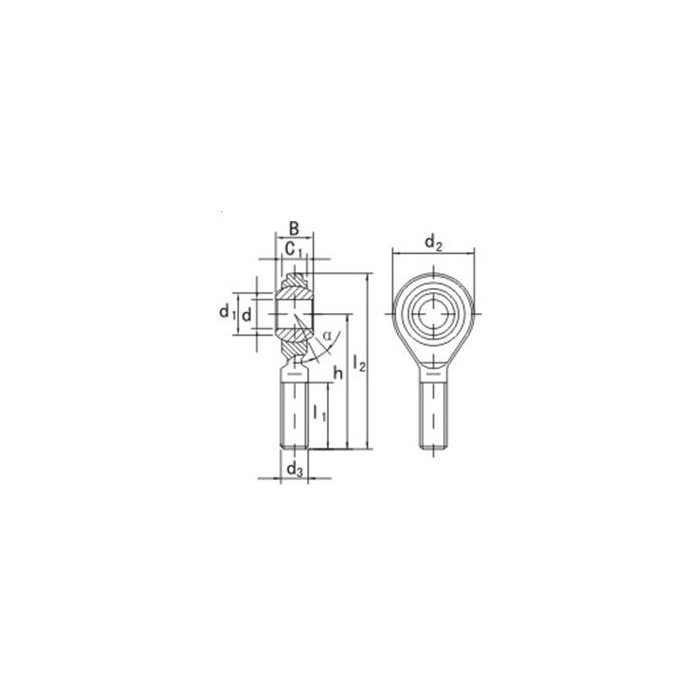

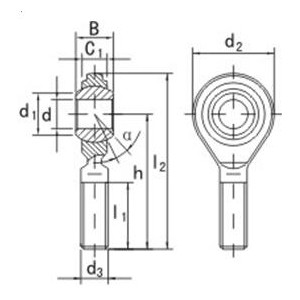

PART NO.	DIMENSIONS (mm)												LOAD RATINGS (KN)		WEIGHT (kg)
	d	d3	B	C1	L1	d2	L7	h	L2	dk	R1s	a	Dynamic	Static
		6g			min		min					≈	Cr	Cor
SA5T/K	5	M5x0.8	8	6	19	18		33	42	11.1	0.3	13	5.7	6	0.013
SA6T/K	6	M6x1.0	9	6.8	21	20		36	46	12.7	0.3	13	7.2	7.65	0.02
SA8T/K	8	M8x1.25	12	9	25	24		42	54	15.9	0.3	14	11.6	12.9	0.038
SA10T/K	10	M10x1.5	14	11	28	28		28	62	19.1	0.3	13	14.5	18	0.055
SA12T/K	12	M12x1.75	16	12	32	32		54	70	22.2	0.3	13	17	24	0.085
SA14T/K	14	M14x2.0	19	14	36	36	18	60	78	25.4	0.3	16	24	31	0.14
SA16T/K	16	M16x2.0	21	15	37	42	21	66	87	28.6	0.3	15	28.5	39	0.21
SA18T/K	18	M18x1.5	23	17	41	44	22	72	94	31.8	0.3	15	42.5	47.5	0.28
SA20T/K	25	M20x1.5	25	18	45	50	25	78	103	34.9	0.3	14	42.5	57	0.38
SA22T/K	22	M22x1.5	28	20	48	54	27	84	111	38.1	0.3	15	57	68	0.48
SA25T/K	25	M24x2.0	31
