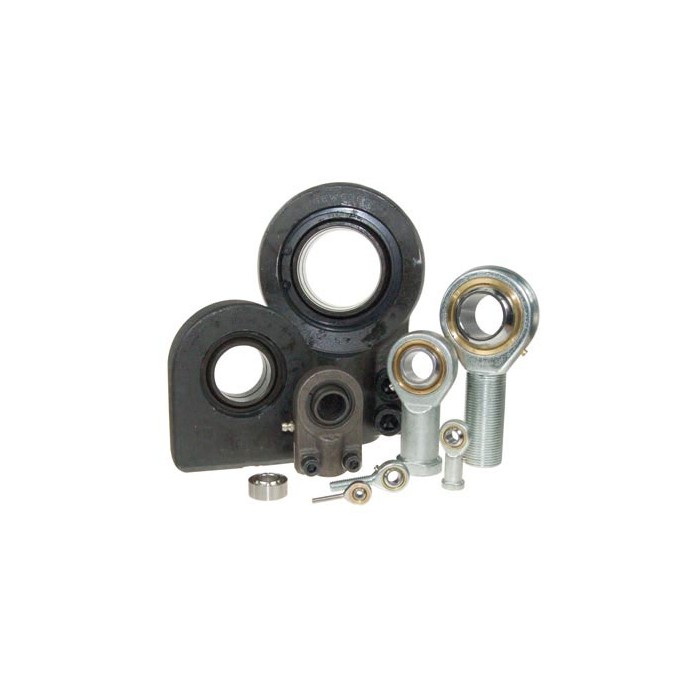

SI5T/K, SI6T/K, SI8T/K, SI10T/K, SI10-1T/K ... SI50T/K rod end,heim joint

Rod ends are available with left or right-hand female or male threads, steel and zinc coated, outer ring of bronze, with sliding surface of PTFE composite material, maintenance-free; inner ring of carbon chromium steel, spherical surface with chromium plating. It has characteristics of large load capability, easy mouting and dismounting and mechanism simplification.

More details




PART NO.

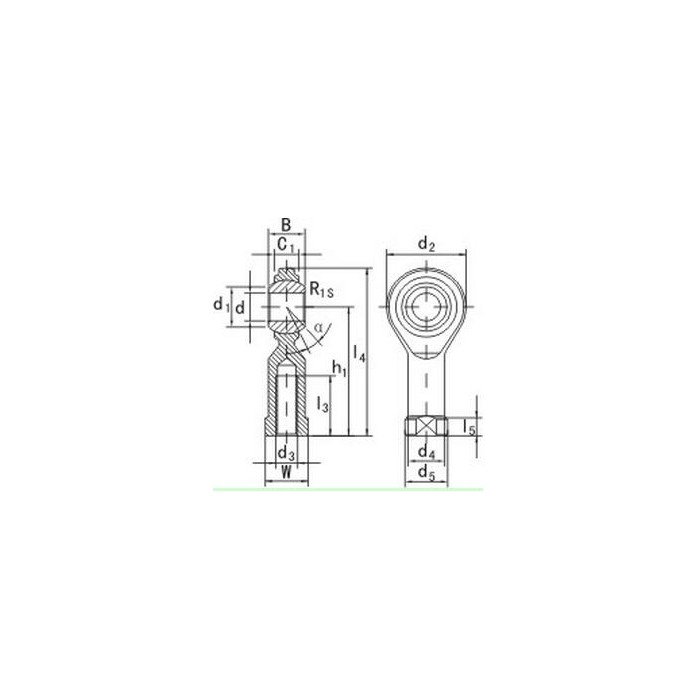

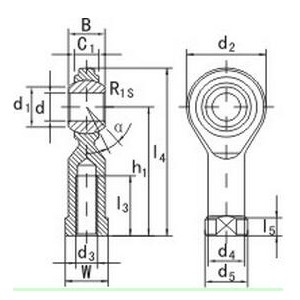

DIMENSIONS ( mm)

LOAD RATINGS (KN)

WEIGHT (kg)

d

d3

B

C1

L3

W

d2

h1

L4

L5

d4

d5

dk

a

Dynamic

Static


6H

min







≈

Cr

Cor

SI5T/K

5

M5x0.8

8

6

10

9

18

27

36

4

8.5

11

11.11

13

5.7

6

0.016

SI6T/K

6

M6x1.0

9

6.8

12

11

20

30

40

5

10

13

12.7

13

7.2

7.65

0.022

SI8T/K

8

M8x1.25

12

9

16

14

24

36

48

5

12.5

16

15.875

14

11.6

12.9

0.047

SI10T/K

10

M10x1.5

14

11

20

17

28

43

57

6.5

15

19

19.05

13

14.5

18

0.077

SI10-1T/K

10

M10x1.25

14

11

20

17

28

43

57

6.5

15

19

19.05

13

14.5

18

0.077

SI12T/K

12

M12x1.25

16

12

22

19

32

50

66

6.5

17.5

22

22.225

13

17

24

0.1

SI12-1T/K

12

M12x1.75

16

12

22

19

32

50

66

6.5

17.5

22

22.225

13

17

24

0.1

SI14T/K

14

M14x2.0

19

14

25

22

36

57

75

8

20

25

25.4

16

24

31
