SI PK rod end Bearing

View full size

SI5PK, SI6PK, SI8PK, SI10PK, SI10-1PK ....SI25PK.

If you are going to import si pk bearing in stock or you want to check the price with one China si pk bearing manufacturer, supplier and factory, please feel free to contact us.

- Rod body with right or left-hand female thread.
- Rod body pressed around inner ring.
- Outer race lined with PTFF composit material.
- Surface of rod body zinc plated.

More details

More info

In the same category

« SI T/K Female Thread Rod Ends SA PK rod end Bearing »

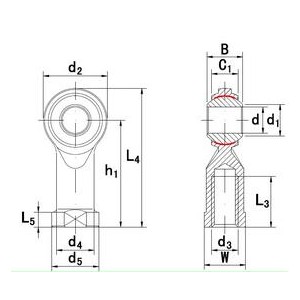

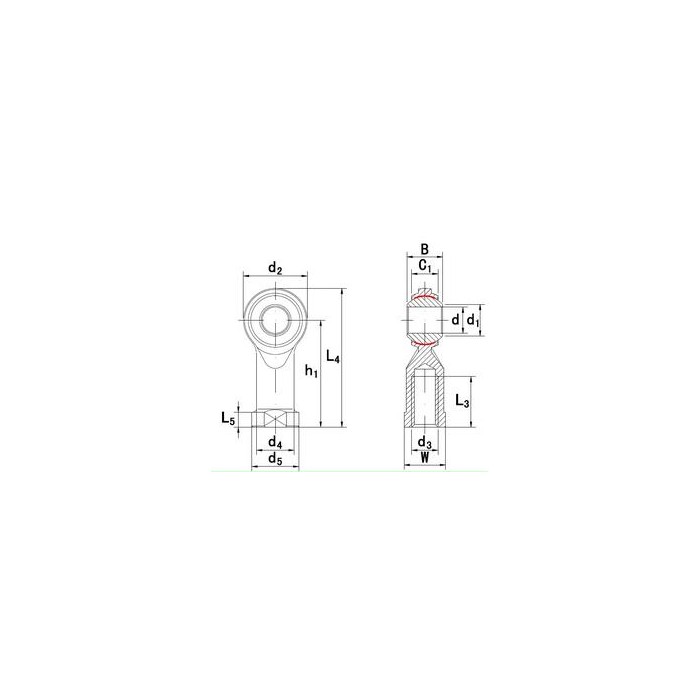

Part No.	Dimensions mm													load ratingsKN		weight kg
	d	d3	B	C1	L3	W	d2	h1	L4	L5	d4	d5	a	dyn.	stat.
		7H			min								≈	Cr	Cor
SI5PK	5	M5x0.8	8	6	10	9	19	27	36.5	4	9	11	12	5.7	6	0.018
SI6PK	6	M6x1.0	9	6.7	12	11	21	30	40.5	5	10	13	11	7.2	7.65	0.026
SI8PK	8	M8x1.25	12	9	16	14	25	36	48.5	5	12.5	16	12	11.6	12.9	0.047
SI10PK	10	M10x1.5	14	11	20	17	29	43	57.5	6.5	15	19	12	14.5	18	0.077
SI10-1PK	10	M10x1.25	14	11	20	17	29	43	57.5	6.5	15	19	12	14.5	18	0.077
SI12PK	12	M12x1.75	16	12	22	19	33	50	66.5	6.5	17.5	22	13	17	24	0.1
SI12-1PK	12	M12x1.25	16	12	22	19	33	50	66.5	6.5	17.5	22	13	17	24	0.1
SI14PK	14	M14x2.0	19	14	25	22	37	57	75.5	8	20	25	14	24	31	0.16
SI16PK	16	M16x2.0	21	15	28	22	43	64	85.5	8	22	27	14	28.5	39	0.22
SI16-1PK	16	M16x1.5	21	15	28	22	43	64	85.5	8	22	27	14	28.5	39	0.22
SI18PK	18	M18x1.5	23	17	32	27	47	71	94.5	10	25	31	14	42.5	47.5	0.32
SI20PK	20	M20x1.5	25	18	33	30	51	77	102.5	10	27.5
