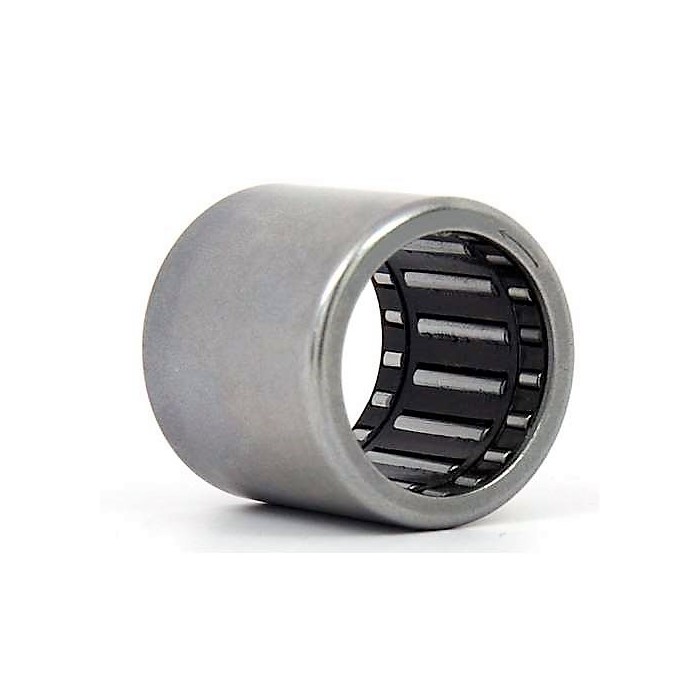

RC40708 One-way clutch needle bearing HFZ 040708

RC40708 One-way clutch needle bearing HFZ 040708

RC40708 One-way clutch needle bearing,

HFZ 040708,Torrington RC-040708, Consolidated  RC-1/4

More details


RC40708 One-way clutch needle bearing,

HFZ 040708,Torrington RC-040708, Consolidated  RC-1/4



Product Details

ID Decimal 0.2500
ID Fraction 1/4"
OD Fraction 7/16"
OD Decimal 0.4375
W Fraction 1/2"
W Decimal 0.5000
Type Inch
Weight 0.035
Interchange INA HFZ 040708, Torrington RC-040708, Consolidated  RC-1/4





Roller Clutch Bearings RC and RC-FS inch type FC, FCS and FCL-K metric type clutch series.
Nominal dimensions with rounded conversions are shown in the product detail page. Types FC, FCS, FCL-K and RC-FS Clutches have stainless steel springs inserted in the , molded cage to position the rollers for instantaneous lockup. RC Type clutches have springs integrally molded with the cage to position the rollers for instantaneous lockup.
The mounted clutch engages when the housing is rotated relative to the shaft in the direction of the arrow marking stamped on the clutch. When manufactured the outer cup of the clutch is accurately drawn from strip steel, it can go slightly out of round durning heat treatment. When the assembly is pressed into a ring gauge or properly prepared houding of the correct size and wall thickness, it becomes round and is properly sized.
Please, contact us if you have detailed questions regarding Heavy Duty Needle Roller Bearings need,prices or technical specifications, We always work hard to give you
the best products and service.
Shanghai Yousen Bearing Co.,ltd.
www.sysbearing.com
sales@sysbearing.com
Chinese Professional needle roller bearing manufacturer
